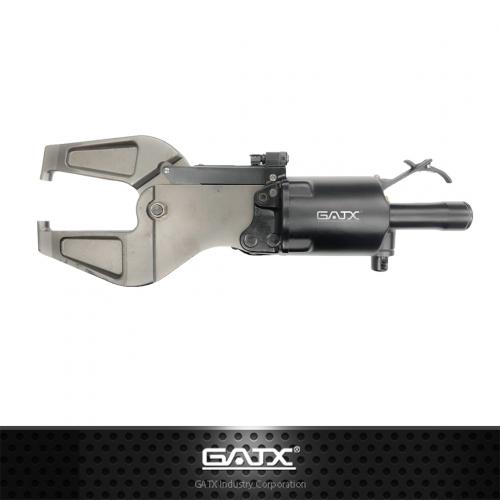

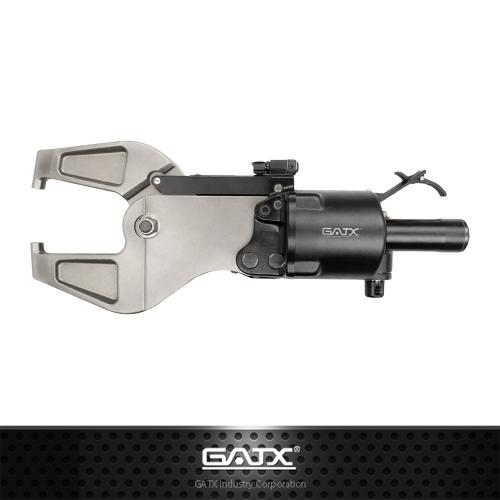

Model No

GP-1706A-5

Compression Riveter

• Rivet Capacity Diameter 3.17mm (1/8") Alum
• 2.38mm (3/32") Steel
• Yoke Reach 5"
• Max Force at 6.2 bar 3,400 lb (15.1 kN)
• Air Pressure 6.2 bar (90 psi)
• Set Holder
• -Max Travel 1-3/8" ( 34.92 mm)
• -Gap 7/8" ( 22.22 mm)
• Overall Length 550 mm
• Net Weight (with Yokes) 9.4 kg
