Model No

GP-0898-A225

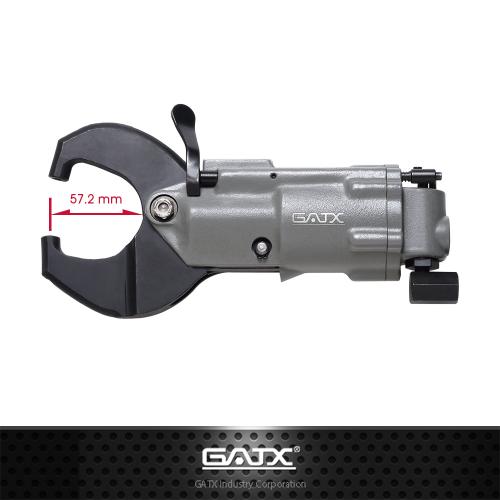

Compression Riveter

• Rivet Capacity Diameter 2.38mm (3/32") Alum
• 1.58mm (1/16") Steel

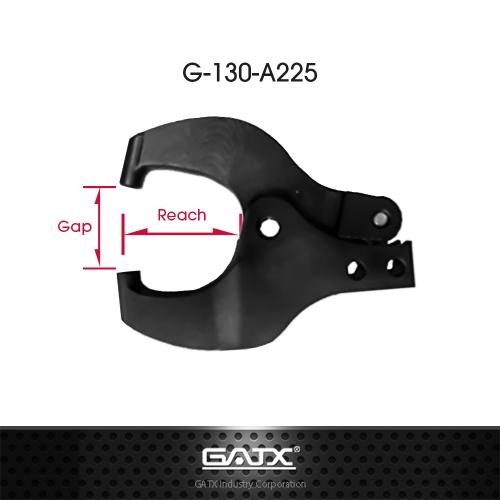

• Standard Yoke Dimensions
• --->Reach 57.2 mm (2-1/4")
• --->Gap 22.6 mm (0.89")
• --->Closed Height 22.2 mm (7/8")
• Max Force at 6.2 bar 1,800 lbs (8 kN)
• Air Pressure 6.2 bar (90 psi)
• Set Holder
• --->Max Travel 22.2 mm (7/8")
• --->Stroke at Max Power 2.4 mm (0.094")
• Overall Length 255 mm
• Net Weight (with Yokes) 2.02 kg
• Packing 6 pcs / 14.4 kg / 1.25 cuft
