Model No

G-7053

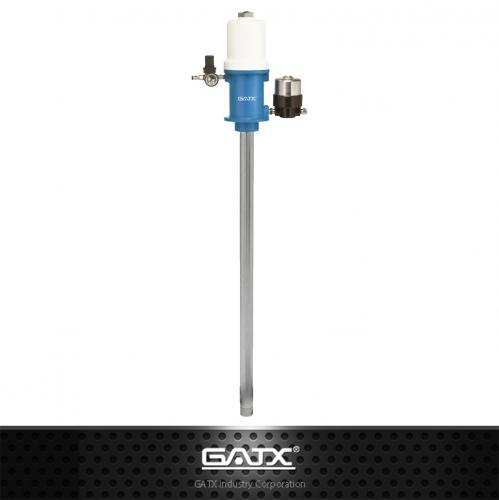

Air Operated Gear Oil Pump (16:1)

• Pumping Ration 16 : 1
• Air pressure 3 to 10 bar (40 to 140 psi)
• Maximum operating pressure 160 bar (2280 psi)
• Operating temperature –40 to 65 °C (-40 to 150 °F)
• Air inlet 1/4"
• Material outlet 1/4"
• Airmotor bore diameter 108 mm (4.25 in.)
• Stroke 75mm
• Output per cycle 8 liter / Min.
• Wetted parts steel, brass, aluminum, nitrile rubber, polyurethane
