Model No

GP-0899-A225

Compression Riveter

  • Rivet Capacity Diameter 4.0mm (5/32") Alum
  • 3.2mm (1/8") Steel

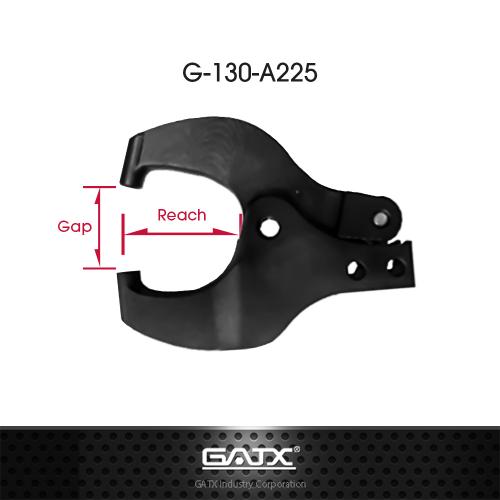

  • Standard Yoke Dimensions
  • --->Reach 57.1 mm (2-1/4")
  • --->Gap 22.6 mm (0.89")
  • --->Closed Height 22.2 mm (7/8")
  • Max Force at 6.2 bar 5,200 lbs
  • Air Pressure 6.2 bar (90 psi)
  • Set Holder
  • --->Max Travel 22.2 mm (7/8")
  • --->Stroke at Max Power 2.4 mm (0.094")
  • Overall Length 328 mm
  • Net Weight (with Yokes) 3.0 kg
  • Packing 6 pcs / 19.0 kg / 1.25 cuft
